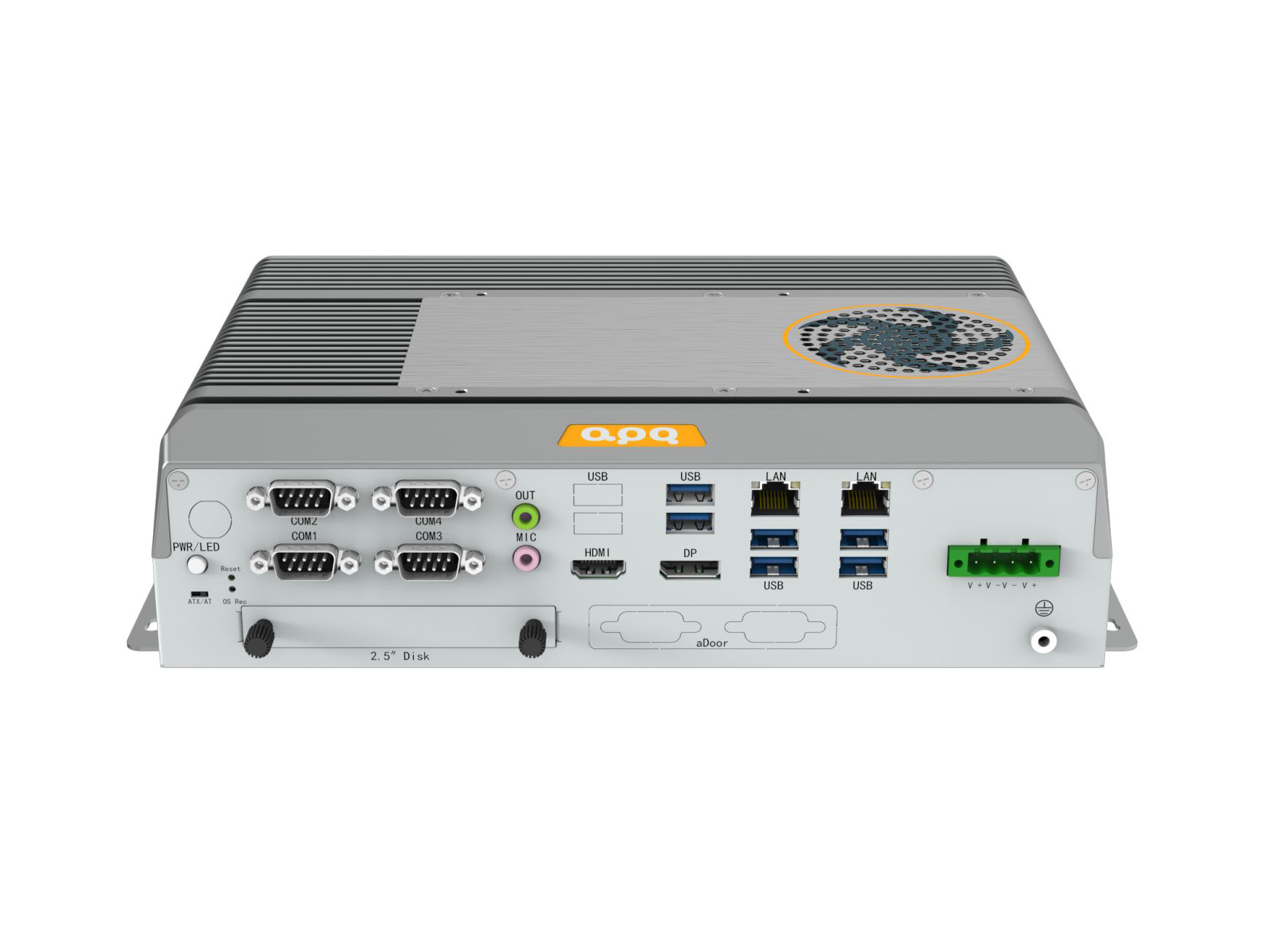

E7S系列H610平臺 嵌入式工控機/BOX
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務

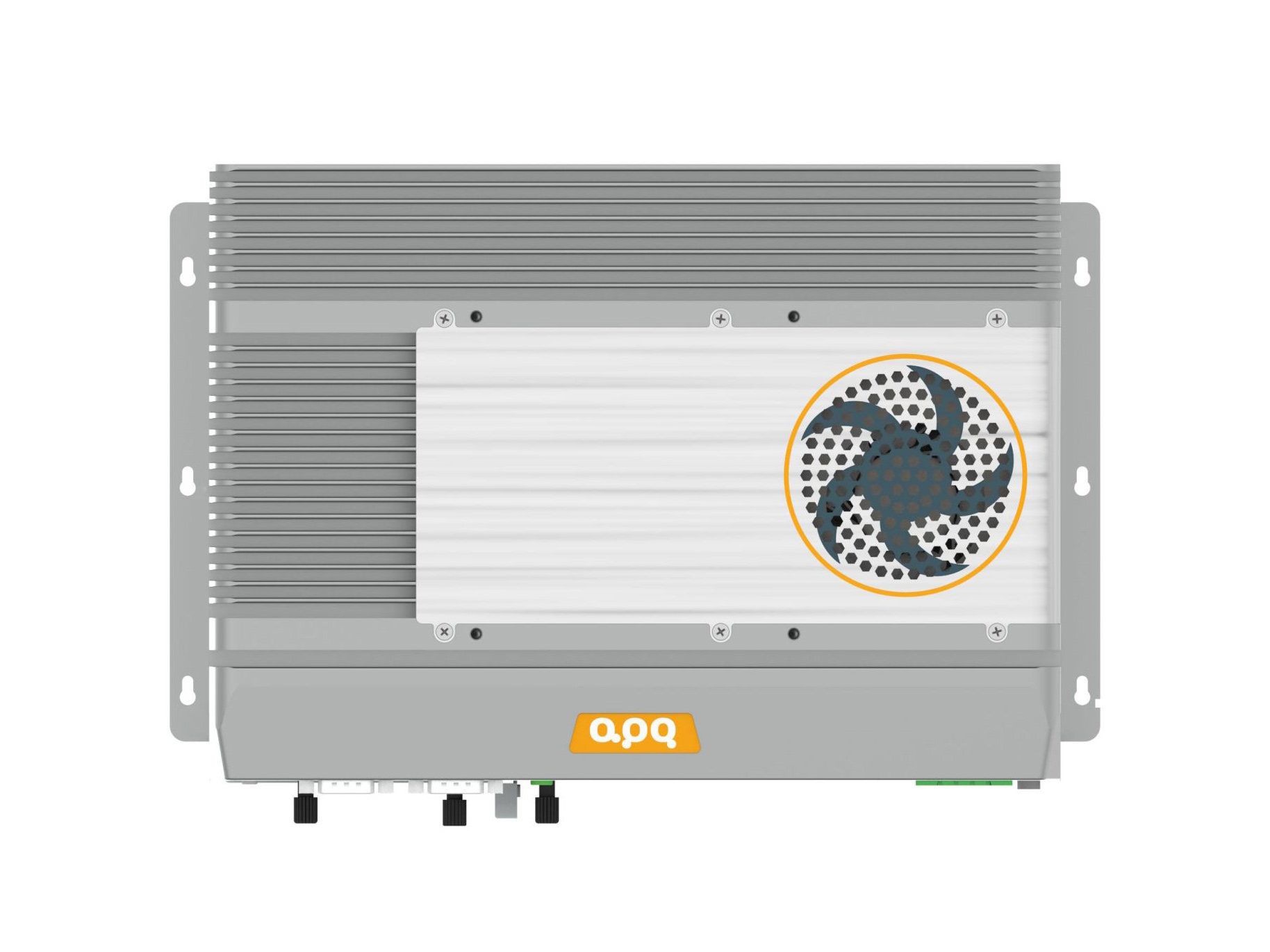

產品描述

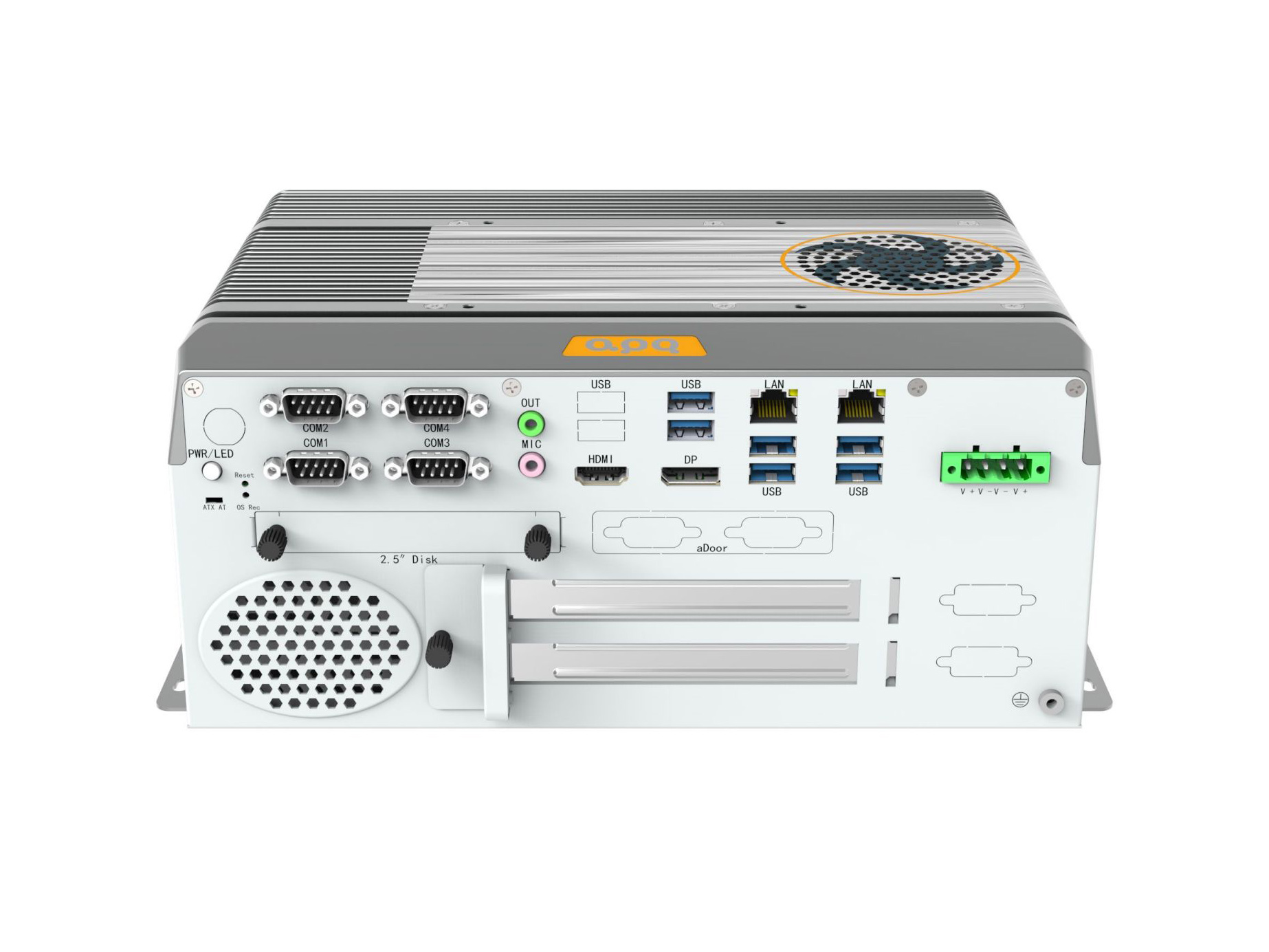

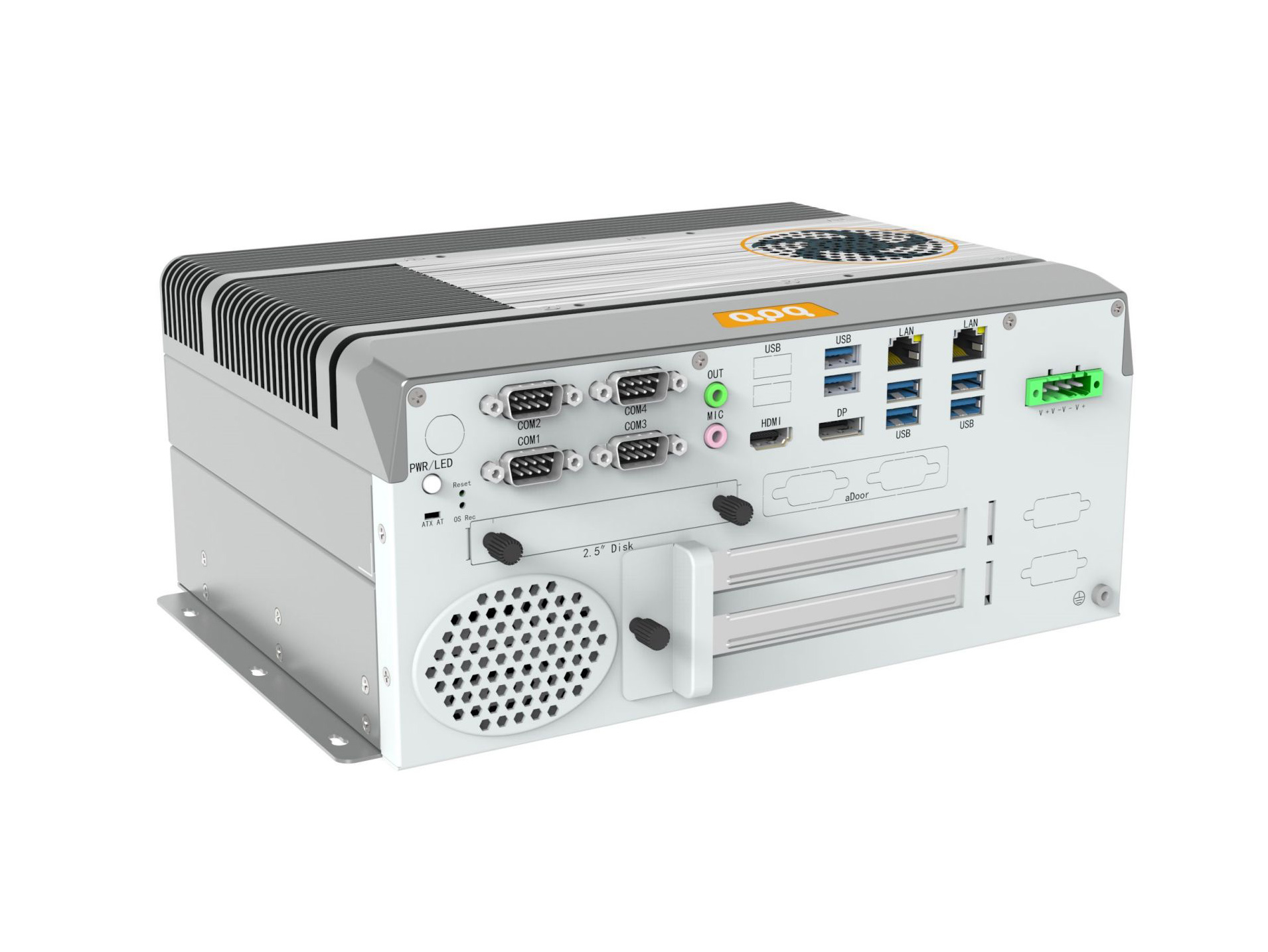

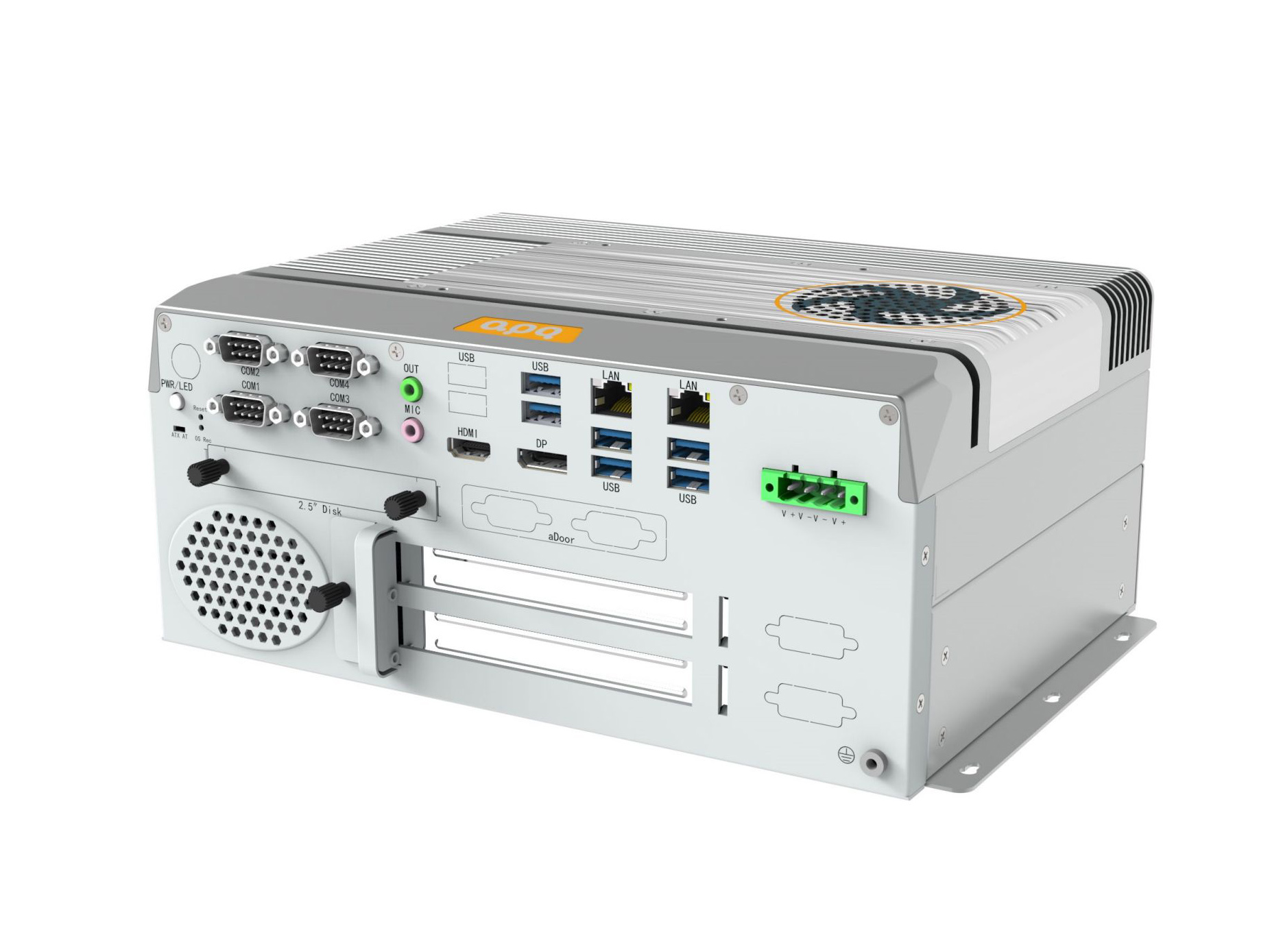

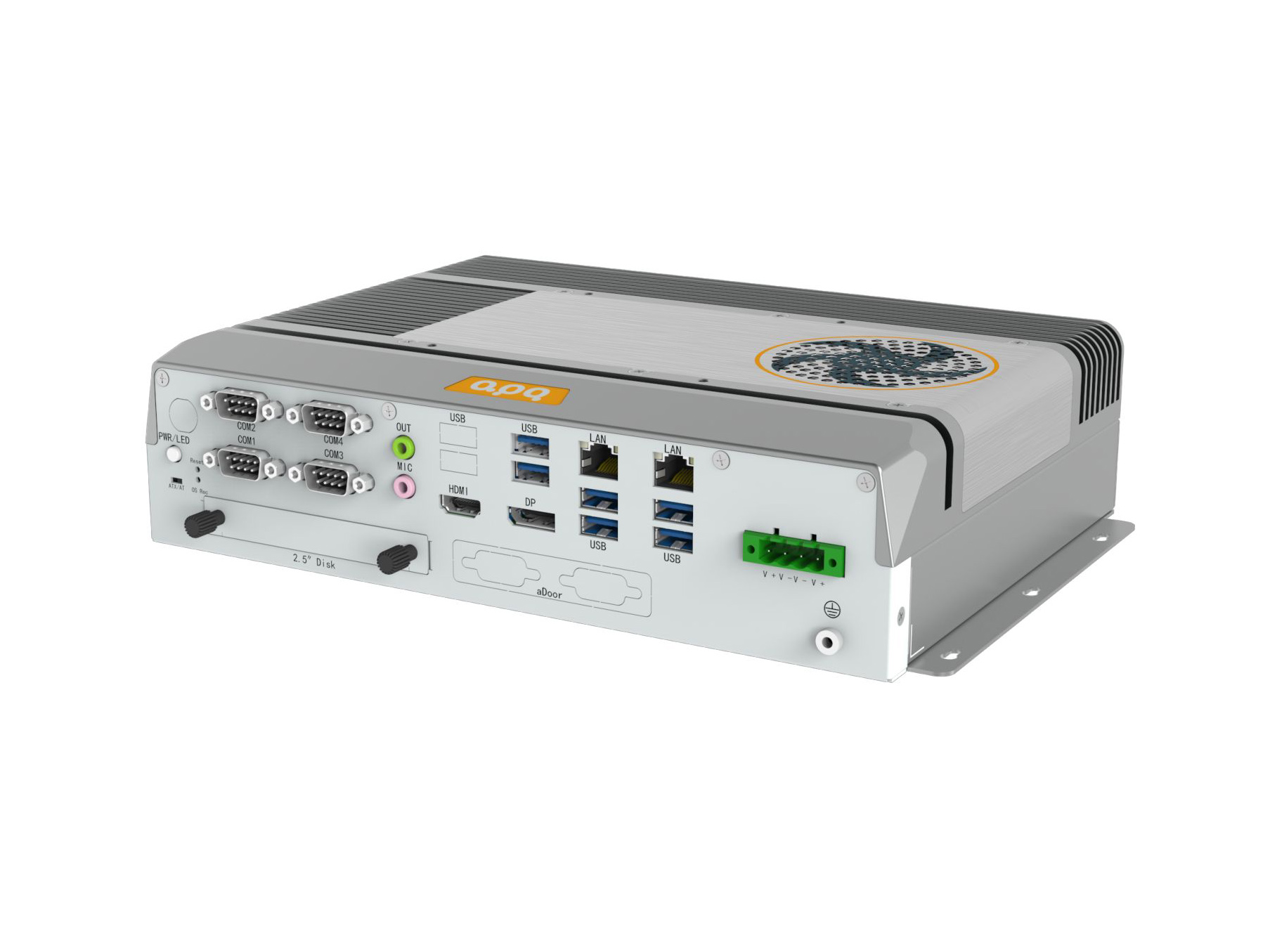

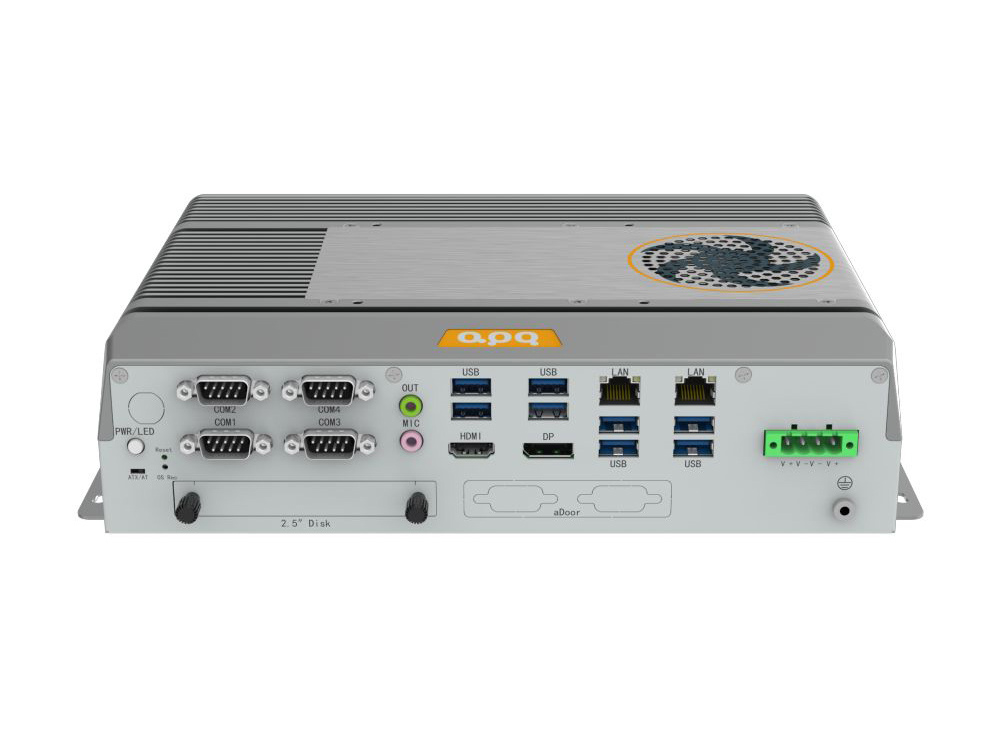

阿普奇嵌入式工控機E7S系列Q670平臺是一款功能強大的嵌入式工控機，專為工業自動化和邊緣計算應用而設計。該平臺支持最新的Intel處理器，包括12和13代Core、Pentium和Celeron系列，提供高效性能和穩定運行。支持Intel? 12/13th Gen Core / Pentium/ Celeron Desktop CPU，這些處理器具有125W的TDP和LGA1700封裝，可提供出色的性能和能效。采用Intel? Q670芯片組，為系統提供穩定的硬件平臺和豐富的擴展功能。2個Intel網絡接口（11GbE & 12.5GbE），確保高速穩定的網絡連接，滿足大數據傳輸和實時通信的需求。具有3路顯示輸出，包括HDMI、DP++和內部LVDS。最高支持4K@60Hz分辨率，滿足高清晰度顯示需求。提供豐富的USB、串口擴展接口和PCIe、mini PCIe、M.2擴展插槽，可根據具體應用需求進行定制配置，滿足各種復雜的工業自動化需求。智能風扇主動散熱設計，確保系統在高負載下的穩定運行。
綜上所述，阿普奇E7S系列H610平臺嵌入式工控機憑借出色的性能、豐富的接口和高效的散熱設計，為工業自動化和邊緣計算提供了強大支持，滿足各種復雜應用場景的需求。
|
Model |
E7S |
E7DS |
|
|
CPU
|
CPU | Intel? 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 125W | ||
| Socket | LGA1700 | ||
| Chipset | H610 | ||
| BIOS | AMI 256 Mbit SPI | ||
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
|
Graphics |
Controller | Intel??UHD Graphics | |
|
Ethernet |
Controller | 1 * Intel i219-LM/V 1GbE LAN Chip (LAN1, 10/100/1000 Mbps) 1 * Intel i225-V/LM 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps) |
|
|
Storage |
SATA | 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
|
Expansion Slots |

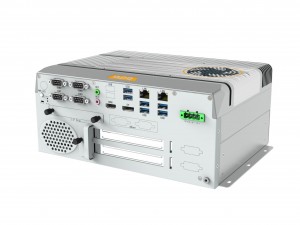

PCIe Slot | N/A | ①: 1 * PCIe x16 (x16)②: 2 * PCI
PS: ①、②One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W |
| aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | ||
| Mini PCIe | 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | ||
|

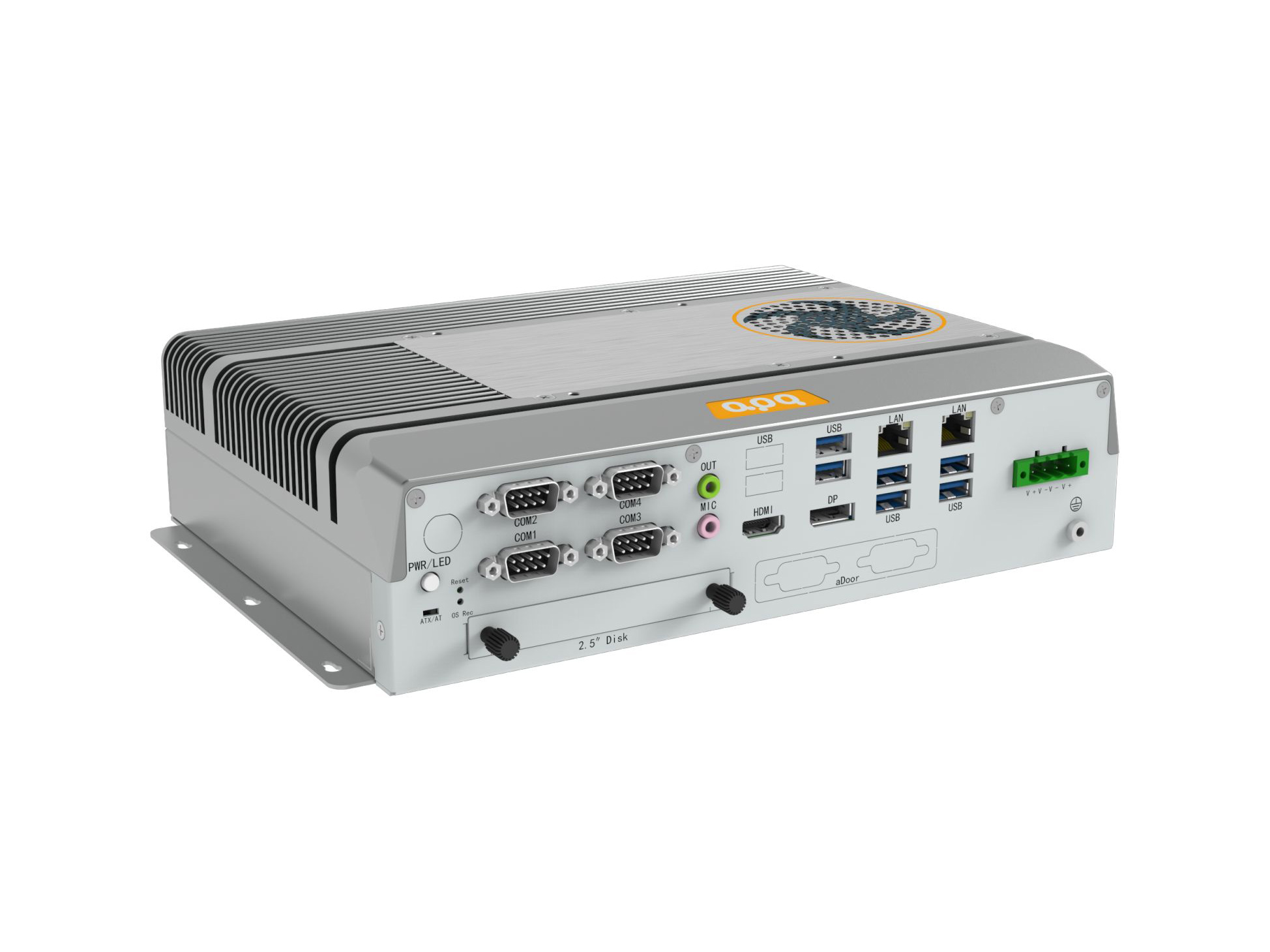

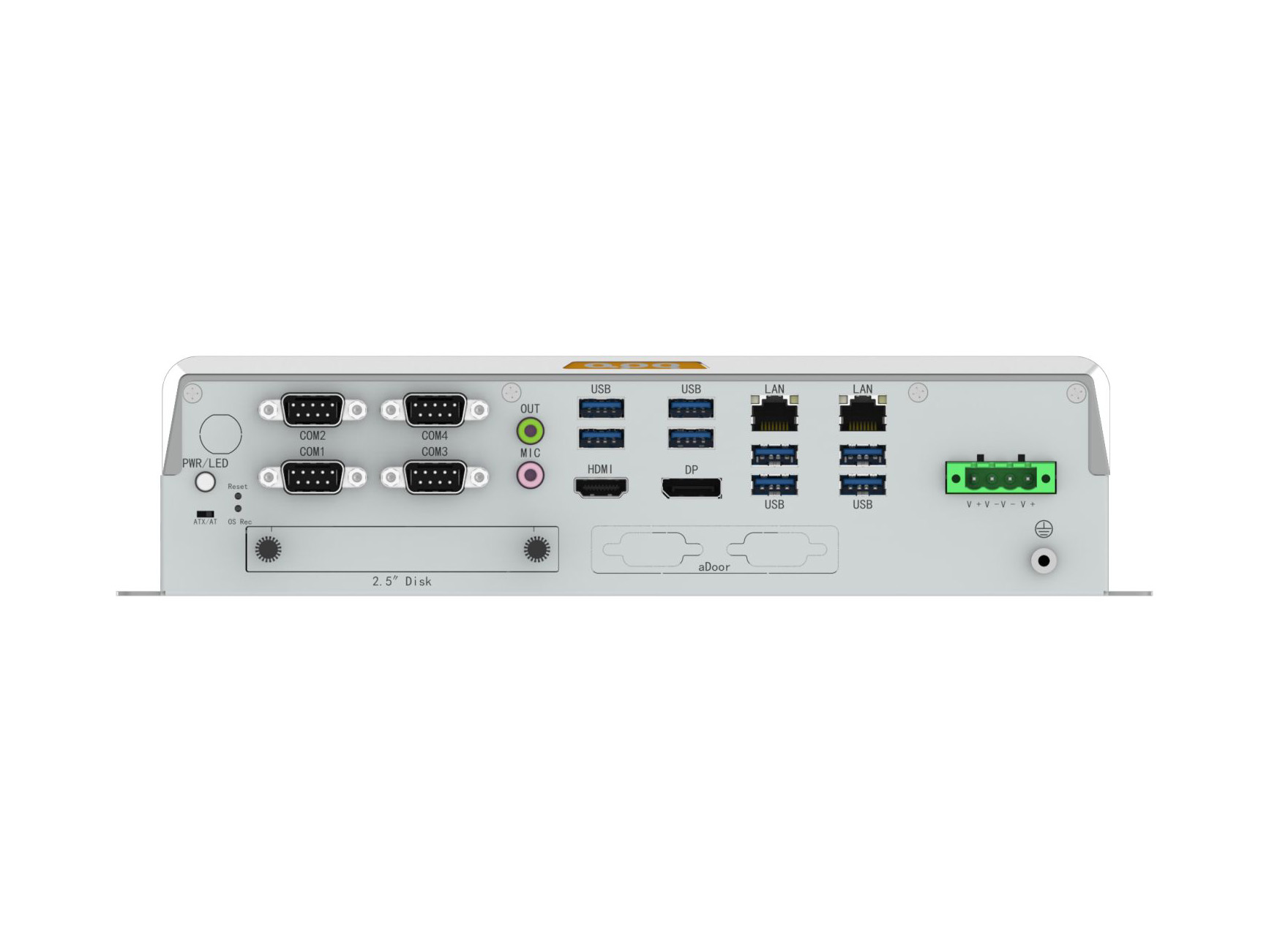

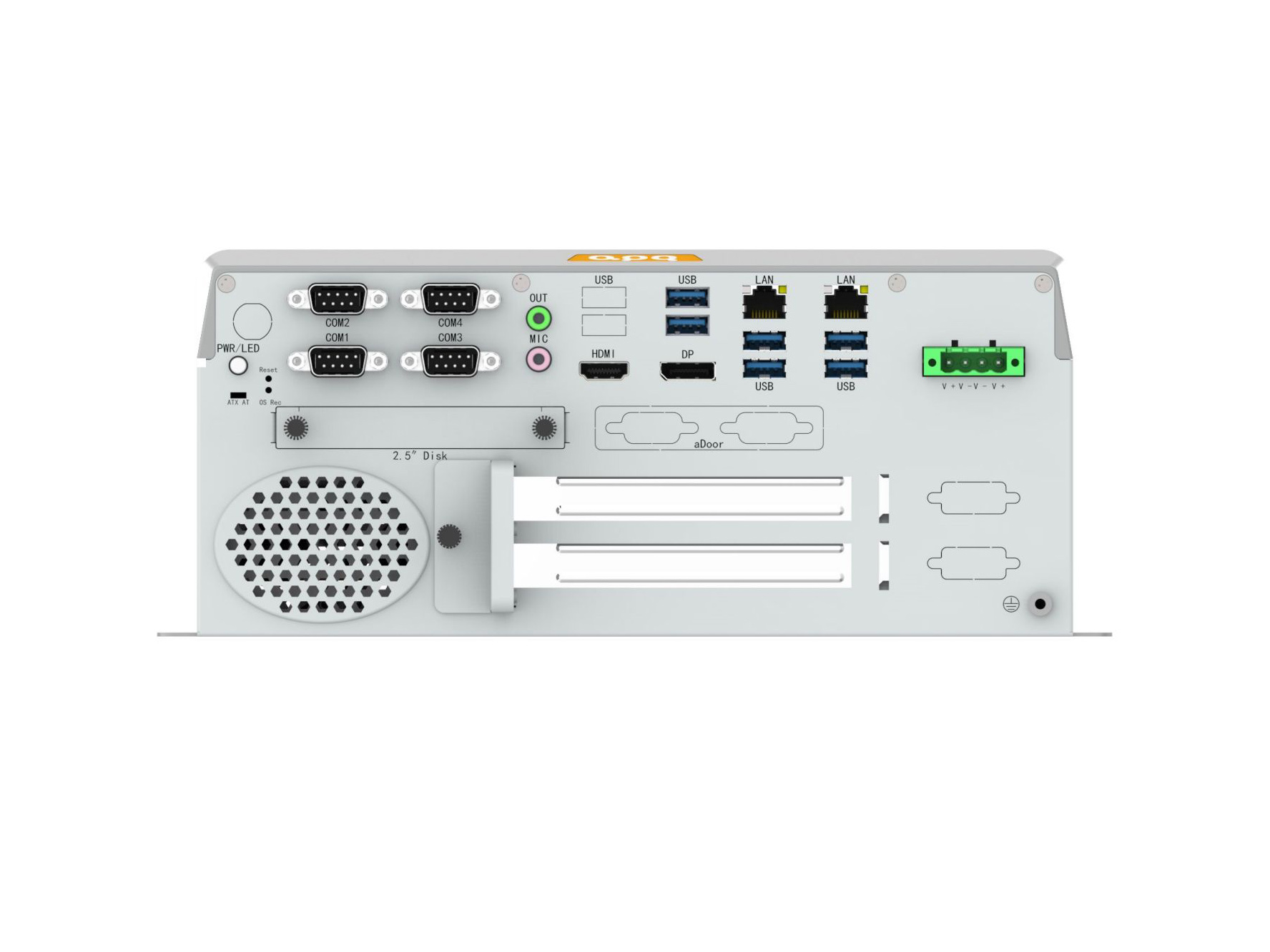

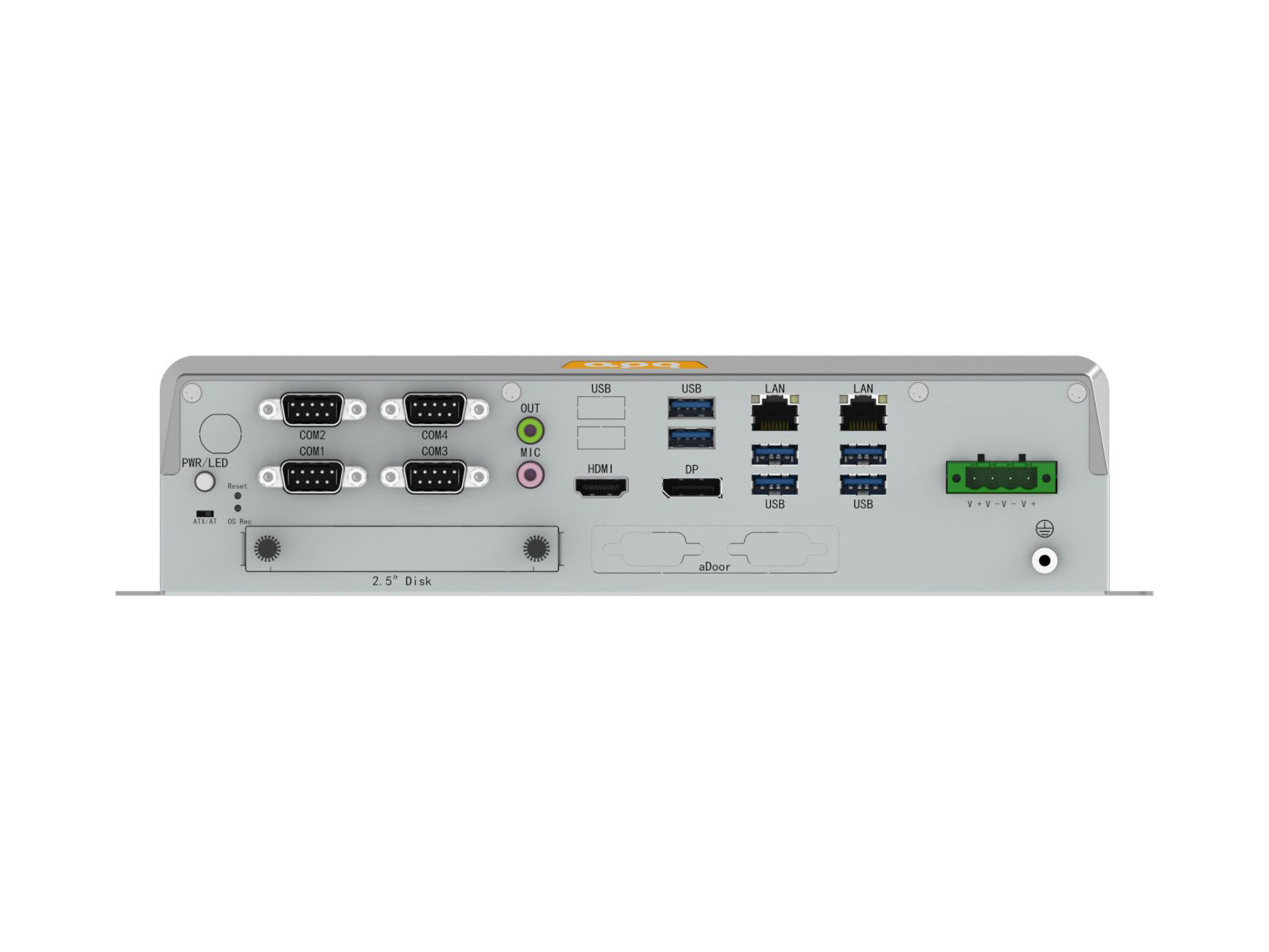

Front I/O |
Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1(Type-A, 10Gbps) 2 * USB3.2 Gen1x1(Type-A, 5Gbps) 2 * USB2.0 (Type-A) |
||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz 1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
||
| Button | 1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
||
|

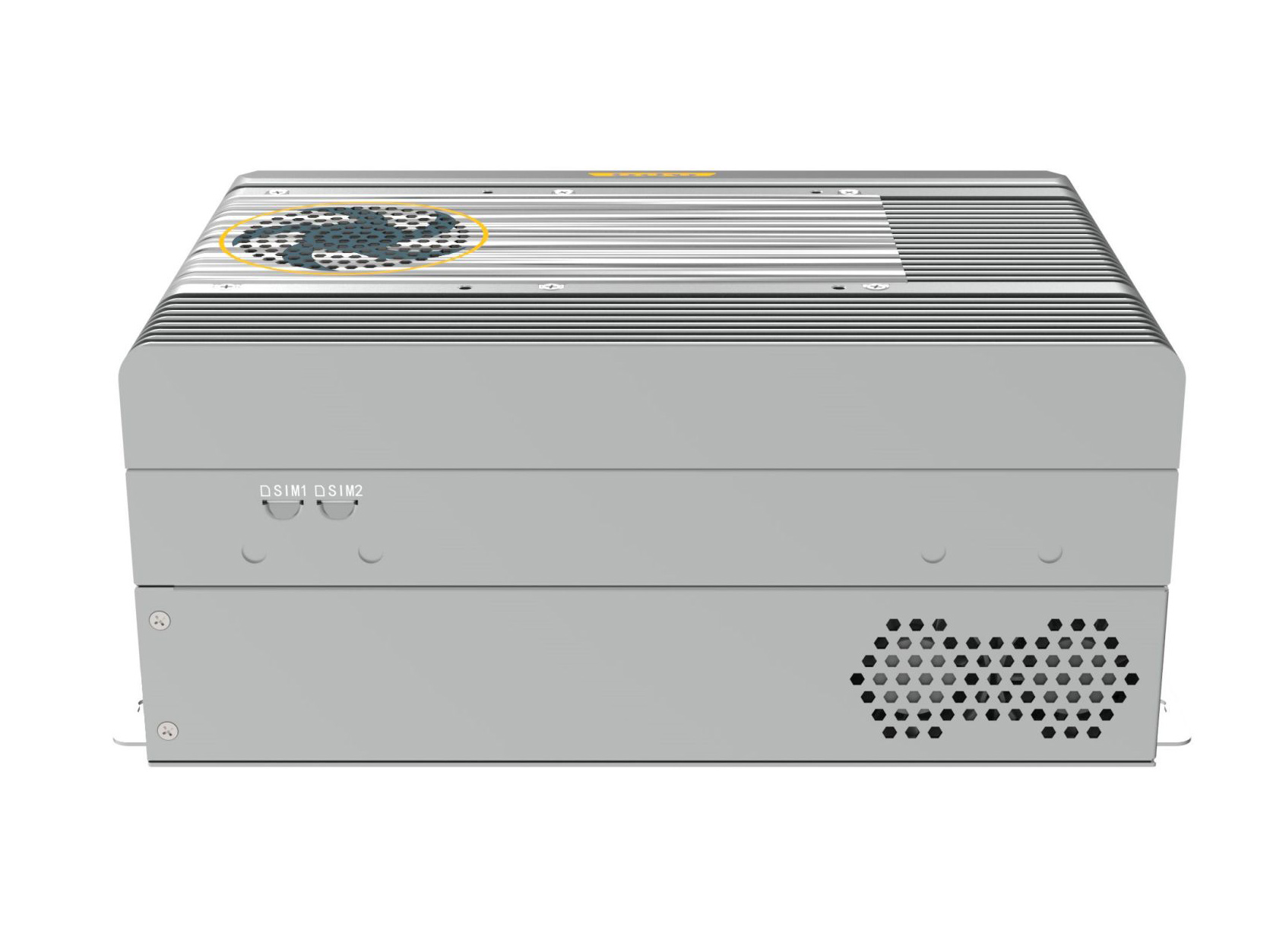

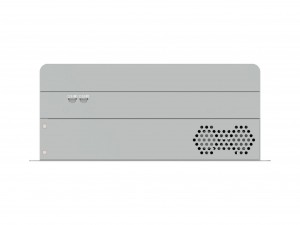

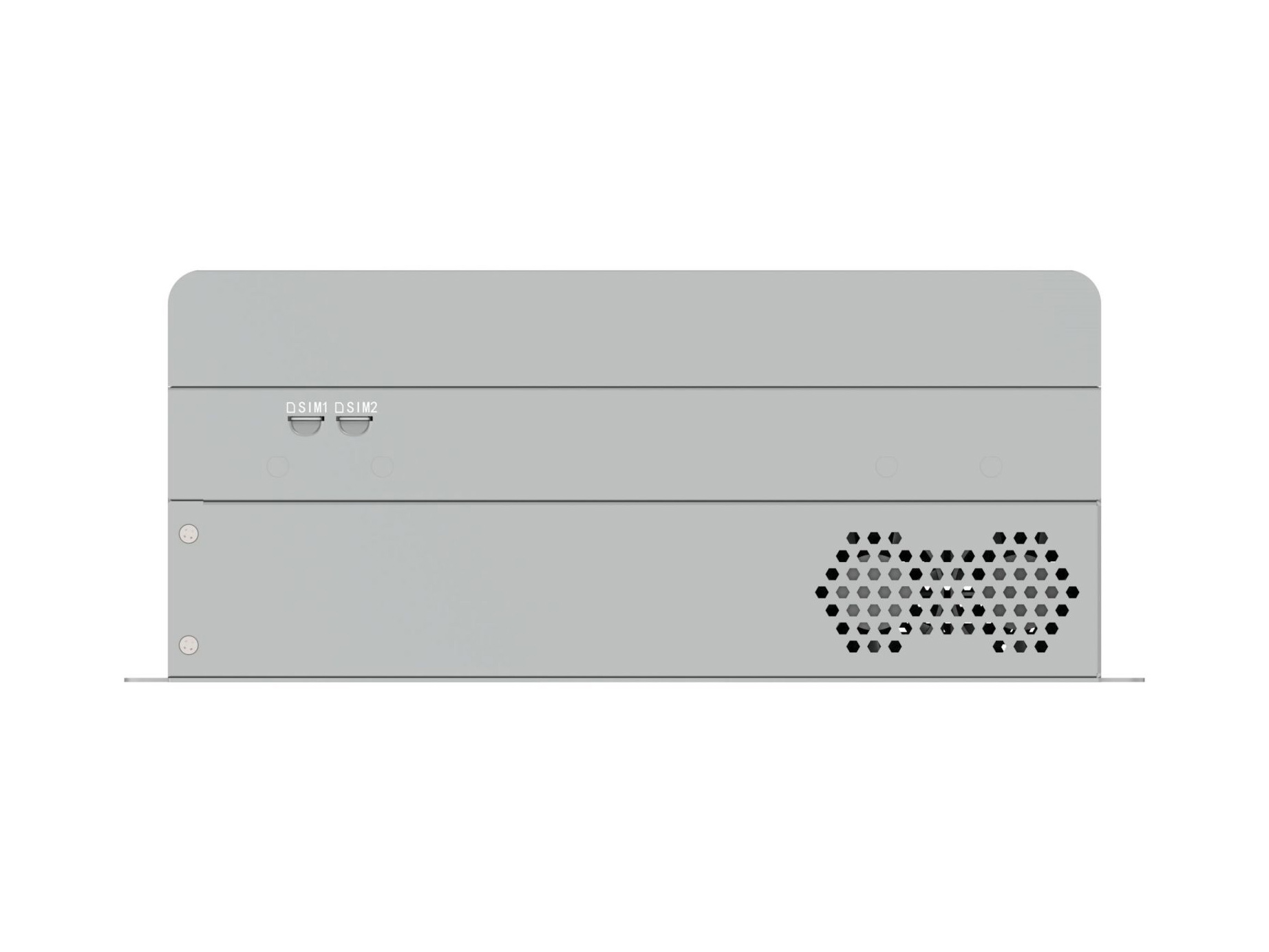

Rear I/O |
Antenna | 4 * Antenna hole | |
| SIM | 1* Nano SIM card slot (SIM1) | ||
|
Internal I/O |
USB | 6 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| Front Panel | 1 * FPanel (PWR + RST + LED, wafer) | ||
| Audio | 1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 3 * SATA 7P Connector, up to 600MB/s | ||
| SATA Power | 3 * SATA Power (wafer) | ||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A) |
||
|
Power Supply |
Type | DC, AT/ATX | |
| Power Input Voltage | 9~36VDC, P≤240W 18~60VDC, P≤400W |
||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
|
OS Support |
Windows | Windows 10/11 | |
| Linux | Linux | ||
|
Watchdog |
Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
|

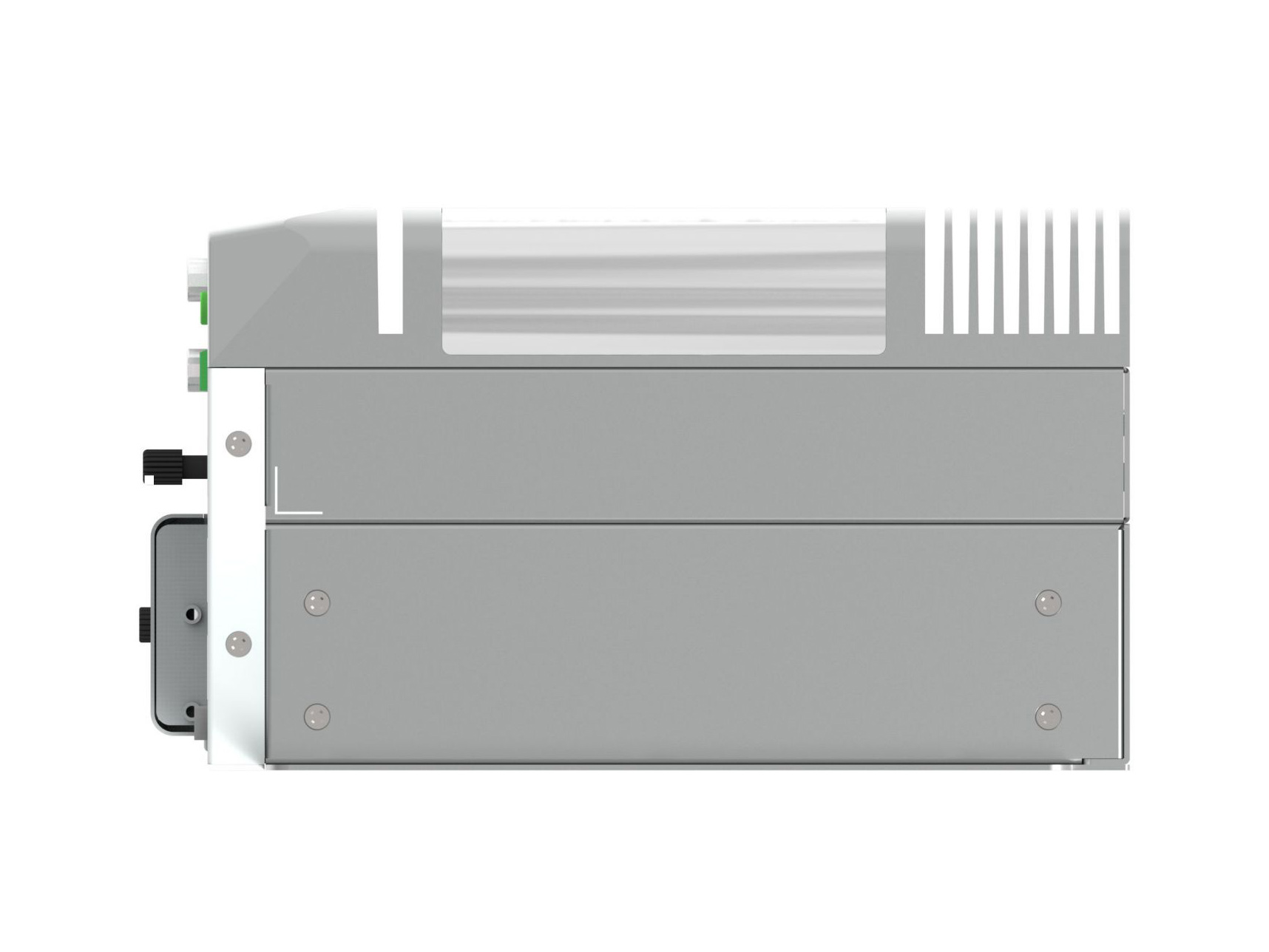

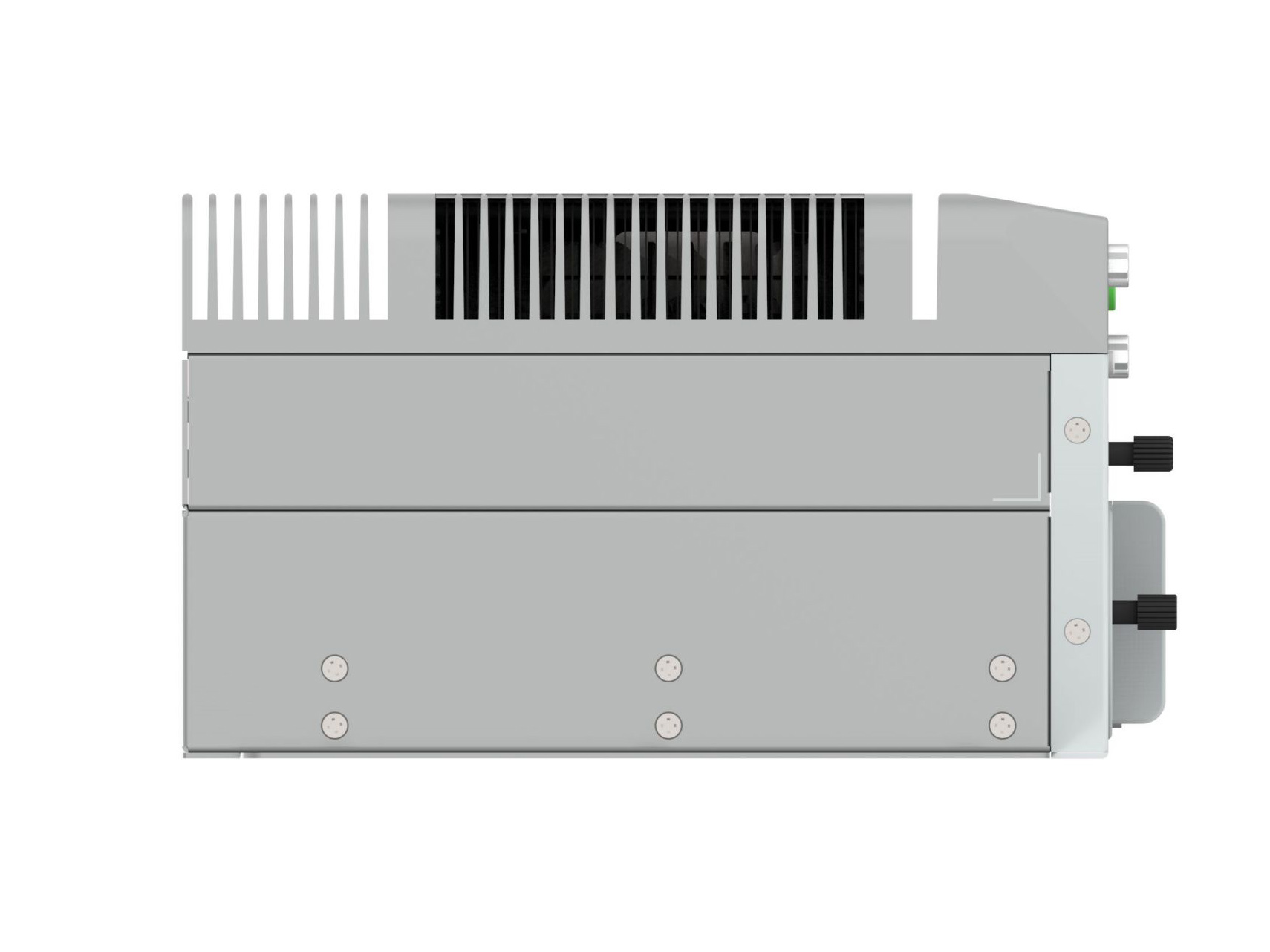

Mechanical |

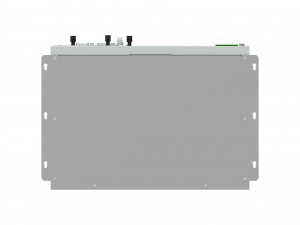

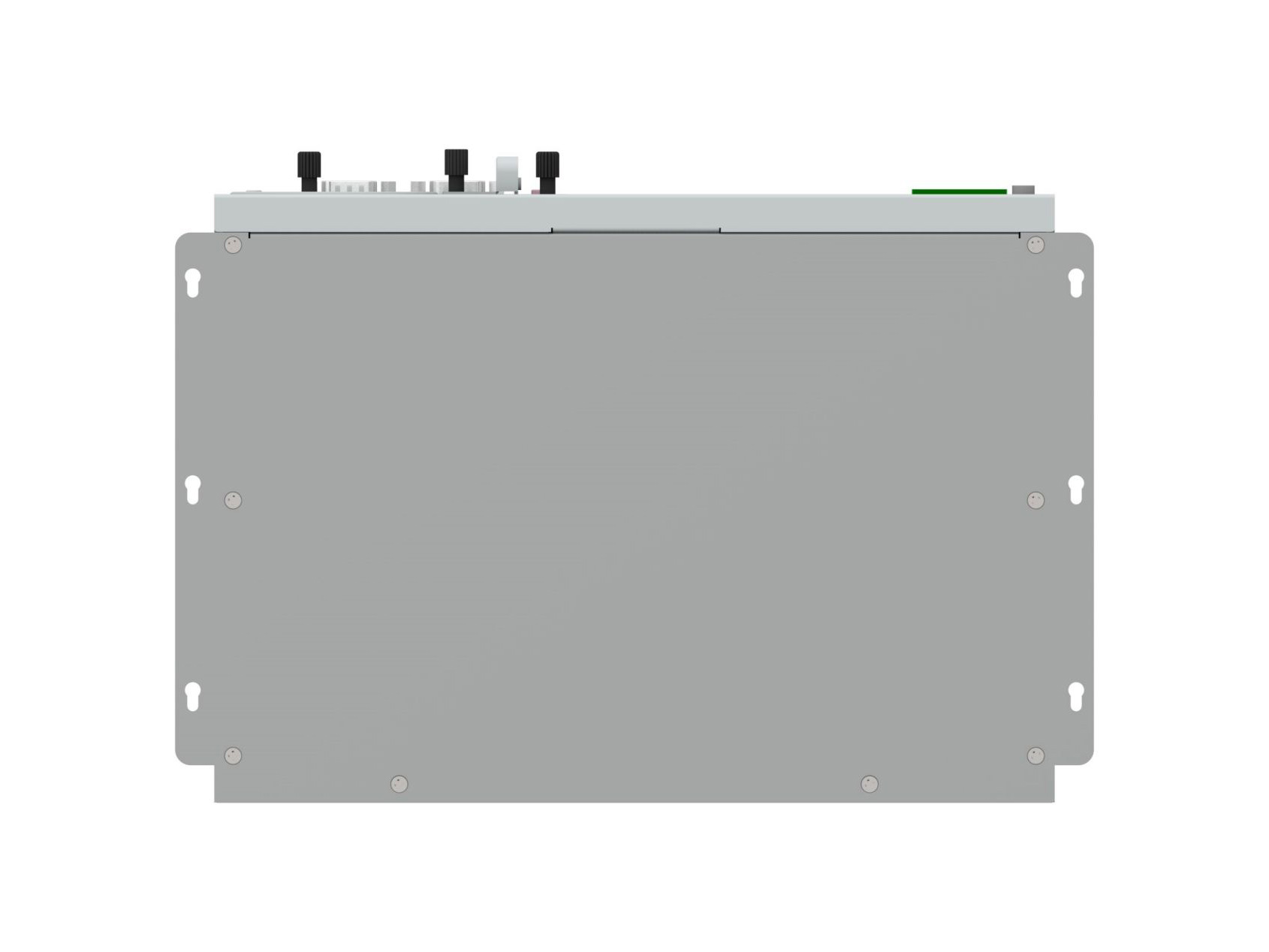

Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | |
| Dimensions | 268mm(L) * 194.2mm(W) * 67.7mm(H) | 268mm(L) * 194.2mm(W) * 118.5mm(H) | |
| Weight | Net: 4.5 kgTotal: 6 kg (Include packaging) | Net: 4.7kgTotal: 6.2 kg (Include packaging) | |
| Mounting | VESA, Wall mounted, Desktop | ||
|
Environment |
Heat Dissipation System | PWM Fan Cooling | |
| Operating Temperature | -20 ~ 60℃?(Industrial SSD) | ||
| Storage Temperature | -40 ~ 80℃?(Industrial SSD) | ||
| Relative Humidity | 10 to 90% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | ||
| Certification | CE/FCC, RoHS | ||
-
嵌入式工控機/BOX E7S系列H610平臺
